ARH Custom Custom Motorcycle Parts and Accessories ARH Custom Custom Motorcycle Parts and Accessories

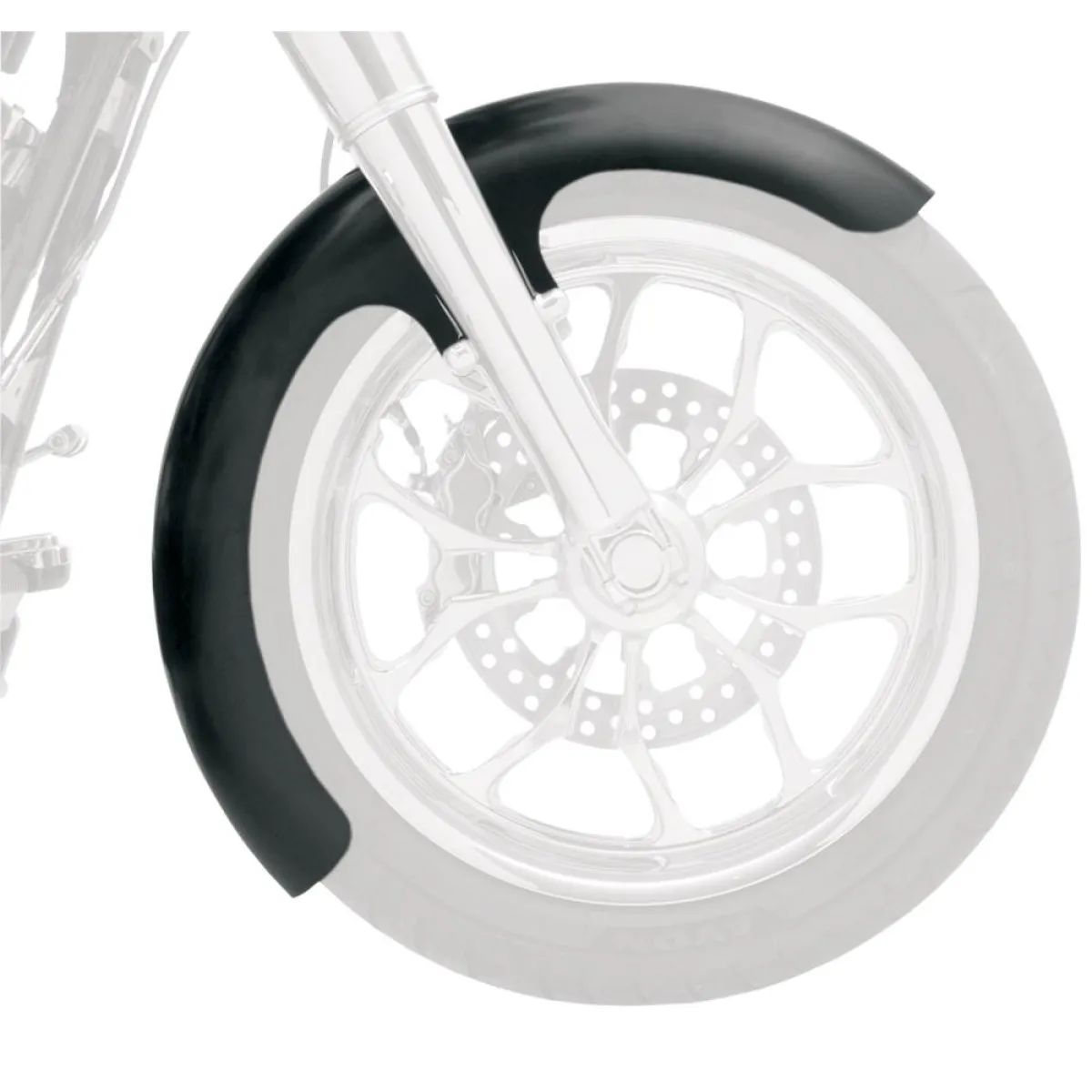

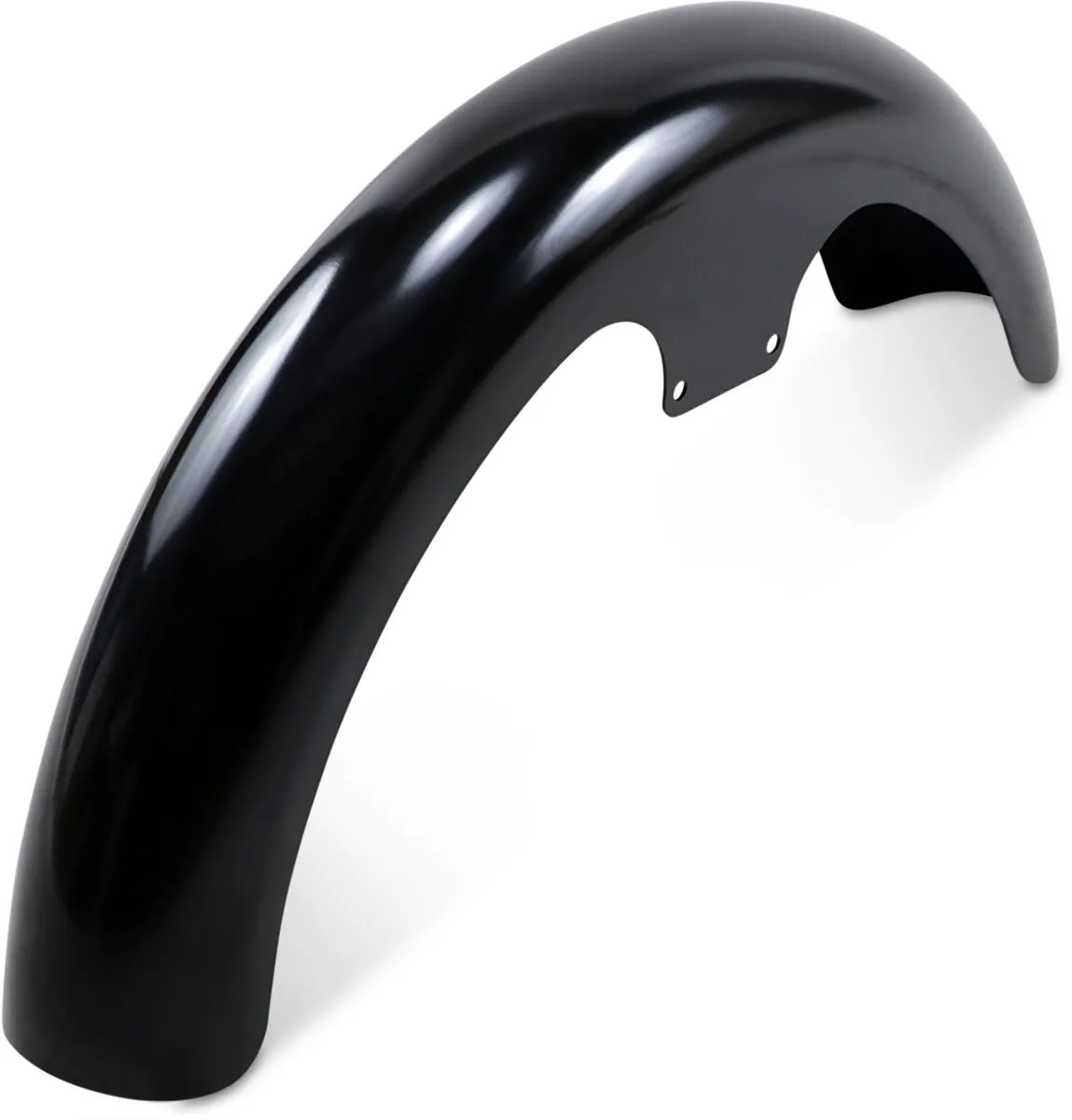

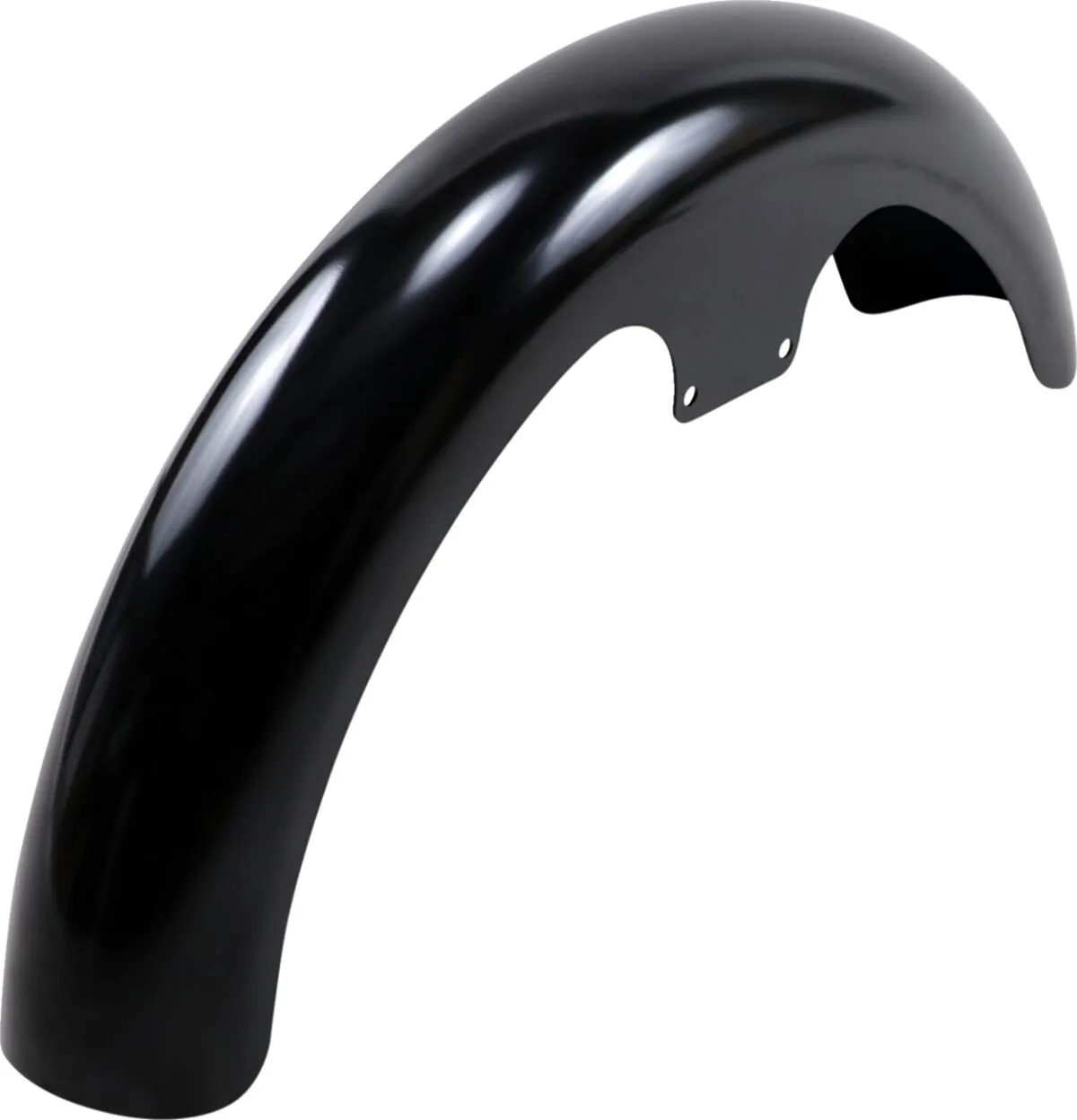

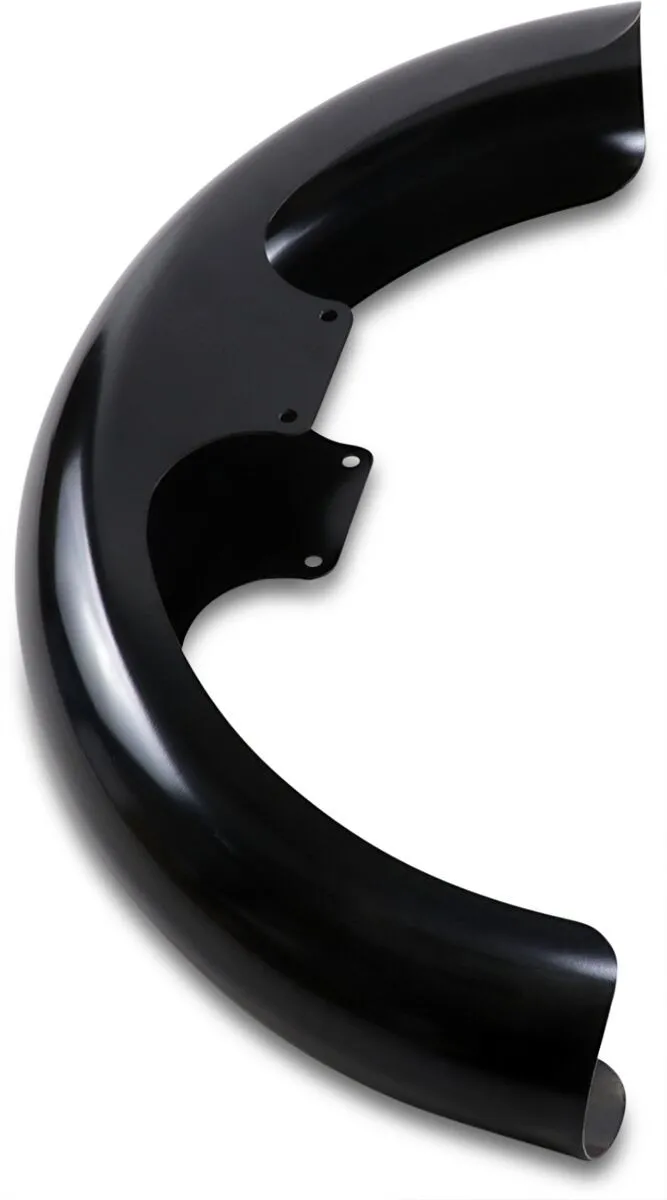

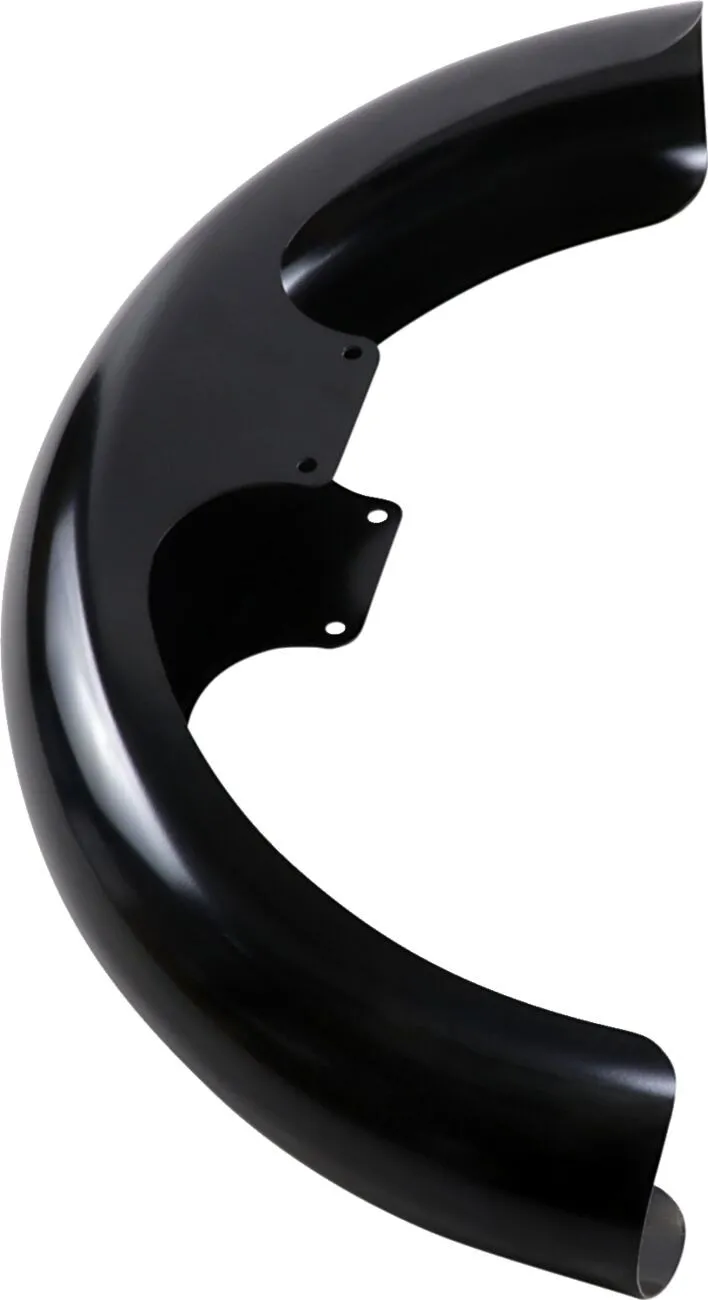

Klock Werks Narrow Wrapper Tire Hugger Series Front Fender (Without Mounting Blocks) For Harley Davidson 2000-2013 Softail & 1999-2005 Dyna Wide Glide Motorcycles With 21 Inch Front Wheel (1401-0280)

  • Klock Werks Narrow Wrapper Tire Hugger Series Front Fender (Without Mounting Blocks) For Harley Davidson 2000-2013 Softail & 1999-2005 Dyna Wide Glide Motorcycles With 21 Inch Front Wheel (1401-0280)
$390.89
Add to Basket Wishlist
Seen it cheaper elsewhere?

Our Price Promise

Seen this item cheaper on another website? Let us try and match it!

We do our upmost to keep our prices competitive but due to the number of items we sell, you may occasionally find a better price advertised elsewhere. If you have seen a cheaper price on another website let us know by filling in this form. If we’re able to match the price, we’ll look to respond via email with a unique discount code within 1 hour (during working hours) so you're not waiting too long.

Your email:
Where did you see it?
Anything else to add?

Please note:

  1. The item must be identical to the one on our website listing and must show as being available.
  2. Price match applies to items sourced from authorised UK retailers only, not private sellers.
  3. Prices will only be matched from UK based websites with prices in GBP.
  4. ARH Custom reserve the right to price match only one of each item per customer.
  5. ARH Custom reserve the right to withdraw the price match policy at any time.

×

US stock Estimated shipping date between 13 Dec and 19 Dec.

Usually ships in 3-4 weeks

All orders are shipped out of our UK premises. Estimated shipping date between 13 Dec and 19 Dec.

×

Klock Werks Tire Hugger Series Front fenders are thick enough to add rigidity to the front end by acting like a fork brace, but can still be cut or shaped enough for an even more custom appearance.

Fenders are stamped steel, not spun, and e-coated for the ultimate smooth, long lasting fender.

Installation requires use of Klock Werks Tire Hugger Front Fender Mounting Blocks (sold separately).

16/18" fenders measure 6.25" outside width and will accommodate a 130 series tire

SKINNY 21" measures 4-1/2" outside width and will fit models listed with the stock narrow rim and a tire up to 100/100-21

All fenders come pre-drilled and E-coated and are stamped, not spun, for the ultimate smooth long-lasting fender

Made in the U.S.A.

FITS:

  • 2000-2013 FXS/FXST/FXSTB/FXSTC
  • 1999-2005 FXDWG

Specifications +

Color/Finish: E-Coating
Outside Mounting Width Metric: 111.125 mm
Height: 305,00 mm (12,00")
Contour Length: 1009,65 mm (39,75")
Model: Tire Hugger
Outside Mounting Width: 111,125 mm (4,375")
Outside Mounting Width Imperial: 4.375"
Inside Mounting Width Imperial: 4.25"
Straight Line Length: 711,20 mm (28,00")
Base Finish: E-Coating
For Wheel Size Imperial: 21.00"
Inside Mounting Width Metric: 107.95 mm
Material: Steel
Mounting Position: Front
Units: Each
Fender Width: 114,30 mm (4,50")
Style: Wrapper
For Wheel Size: 533,40 mm (21,00")
For Wheel Size Metric: 533.40 mm
Product Name: Fender
Inside Mounting Width: 107,95 mm (4,25")

Part numbers +

  • 1401-0280
  • KW05-02-0500S

Fitment +

    HARLEY DAVIDSON
  • Softail Slim - FLS: 2012-2013
  • Softail Heritage - FLST: 2006
  • Softail Heritage Classic - FLSTC: 2000-2013
  • Softail Heritage Classic (EFI) - FLSTCI: 2001-2006
  • Softail Fat Boy - FLSTF: 2000-2013
  • Softail Fat Boy Lo - FLSTFB: 2010-2013
  • Softail Fat Boy (EFI) - FLSTFI: 2001-2006
  • Softail Fat Boy CVO/SE - FLSTFSE: 2005
  • Softail Fat Boy CVO/SE - FLSTFSE2: 2006
  • Softail Heritage (EFI) - FLSTI: 2006
  • Softail Deluxe - FLSTN: 2005-2013
  • Softail Deluxe (EFI) - FLSTNI: 2005-2006
  • Softail Convertible CVO/SE - FLSTSE: 2010
  • Softail Convertible CVO/SE - FLSTSE2: 2011
  • Softail Convertible CVO/SE - FLSTSE3: 2012
  • Softail Rocker - FXCW: 2008-2009
  • Softail Rocker C - FXCWC: 2008-2011
  • Dyna Wide Glide - FXDWG: 1999-2005
  • Dyna Wide Glide - FXDWG2: 2001
  • Dyna Wide Glide - FXDWG3: 2002
  • Dyna Wide Glide (EFI) - FXDWGI: 2004-2005
  • Softail Blackline - FXS 1584: 2011-2013
  • Softail Blackline - FXS 1690: 2012-2013
  • Softail Breakout - FXSB: 2013
  • Softail Breakout CVO/SE - FXSBSE: 2013
  • Softail - FXST: 2000-2007
  • Softail Night Train - FXSTB: 2000-2009
  • Softail Night Train (EFI) - FXSTBI: 2003-2006
  • Softail Custom - FXSTC: 2007-2010
  • Softail Deuce - FXSTD: 2000-2007
  • Softail Deuce (EFI) - FXSTDI: 2001-2006
  • Softail Deuce CVO/SE - FXSTDSE: 2003
  • Softail Deuce CVO/SE - FXSTDSE2: 2004
  • Softail Standard (EFI) - FXSTI: 2003-2006
  • Softail Standard - FXST: 2008-2013
