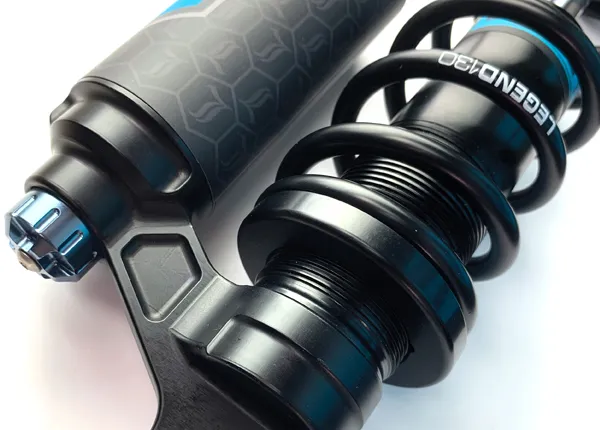

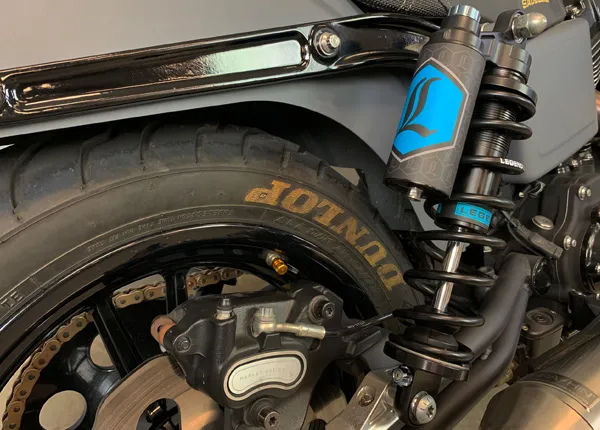

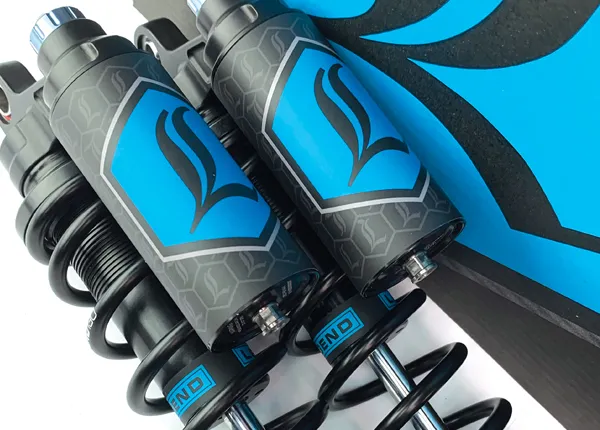

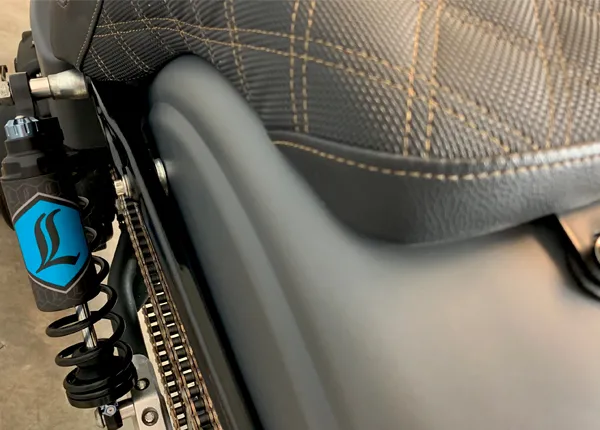

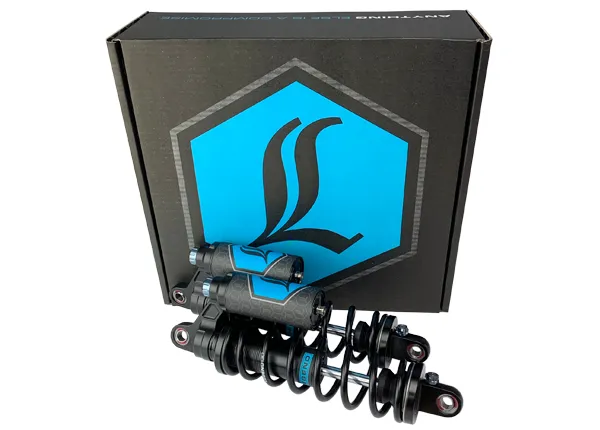

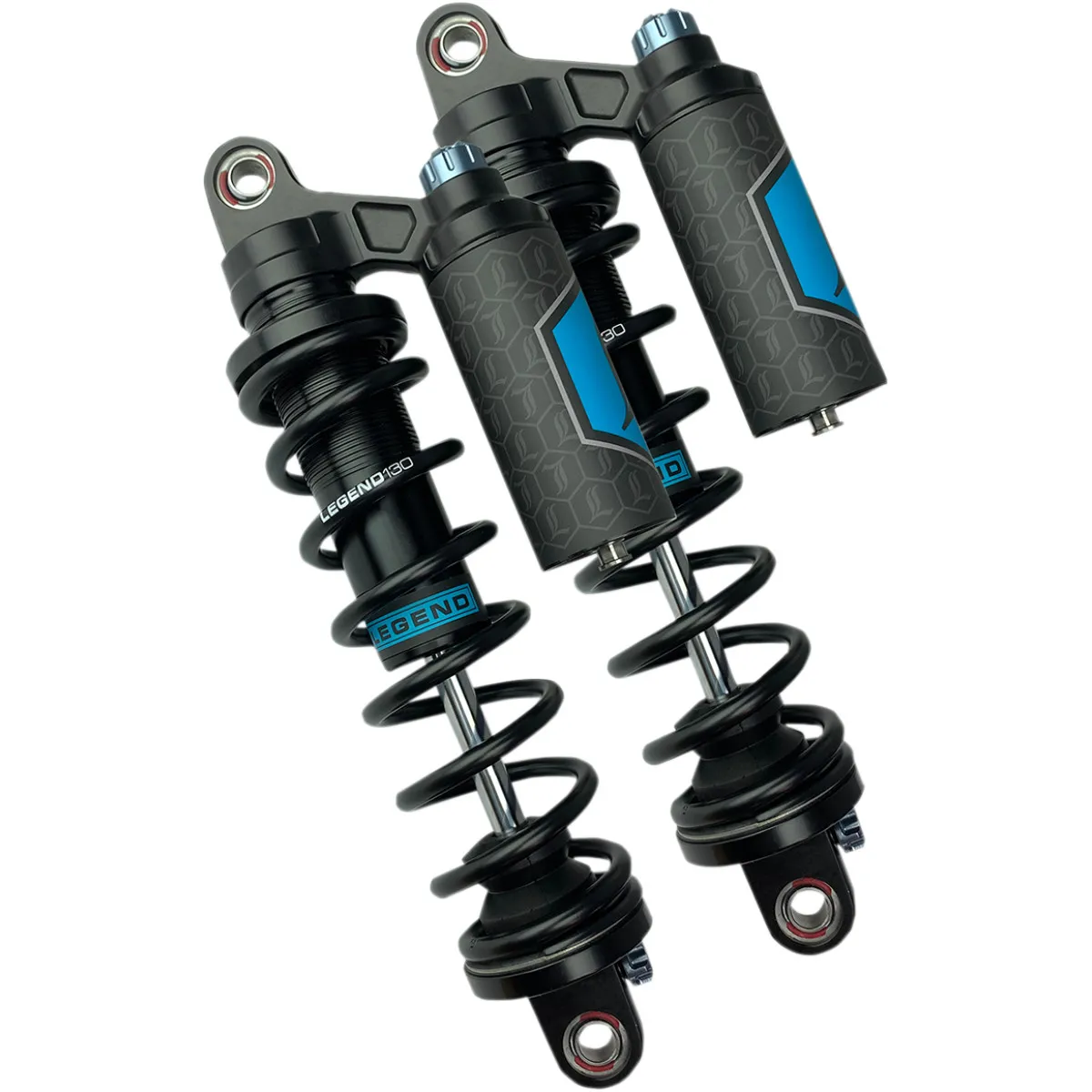

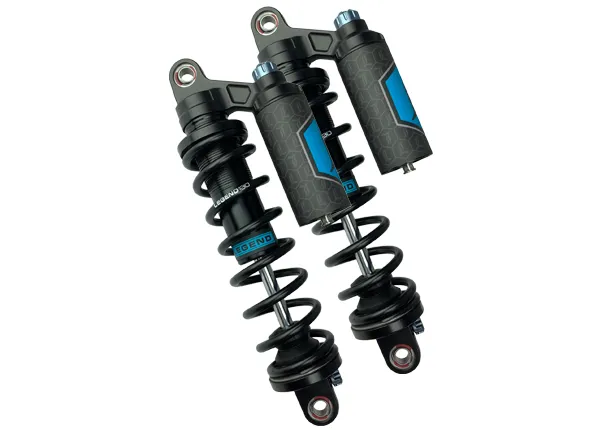

Legend 13 Inch Revo Arc Piggyback Suspension In Black For Harley Davidson 1999-2017 Dyna Motorcycles (1310-1890)

  • Legend 13 Inch Revo Arc Piggyback Suspension In Black For Harley Davidson 1999-2017 Dyna Motorcycles (1310-1890)
$1,698.30
Add to Basket Wishlist
Seen it cheaper elsewhere?

Our Price Promise

Seen this item cheaper on another website? Let us try and match it!

We do our upmost to keep our prices competitive but due to the number of items we sell, you may occasionally find a better price advertised elsewhere. If you have seen a cheaper price on another website let us know by filling in this form. If we’re able to match the price, we’ll look to respond via email with a unique discount code within 1 hour (during working hours) so you're not waiting too long.

Your email:
Where did you see it?
Anything else to add?

Please note:

  1. The item must be identical to the one on our website listing and must show as being available.
  2. Price match applies to items sourced from authorised UK retailers only, not private sellers.
  3. Prices will only be matched from UK based websites with prices in GBP.
  4. ARH Custom reserve the right to price match only one of each item per customer.
  5. ARH Custom reserve the right to withdraw the price match policy at any time.

×

US stock Estimated shipping date between 13 Dec and 19 Dec.

Usually ships in 3-4 weeks

All orders are shipped out of our UK premises. Estimated shipping date between 13 Dec and 19 Dec.

×

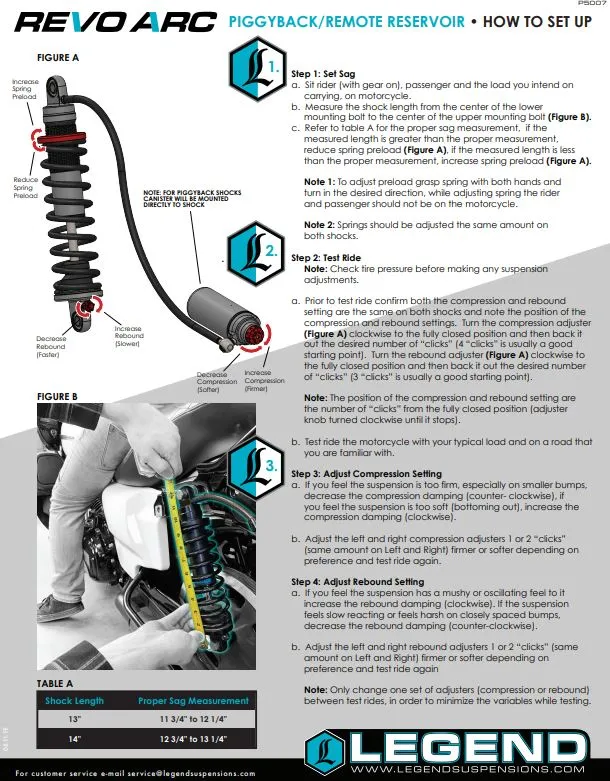

Instructions

PRODUCT DESCRIPTION:

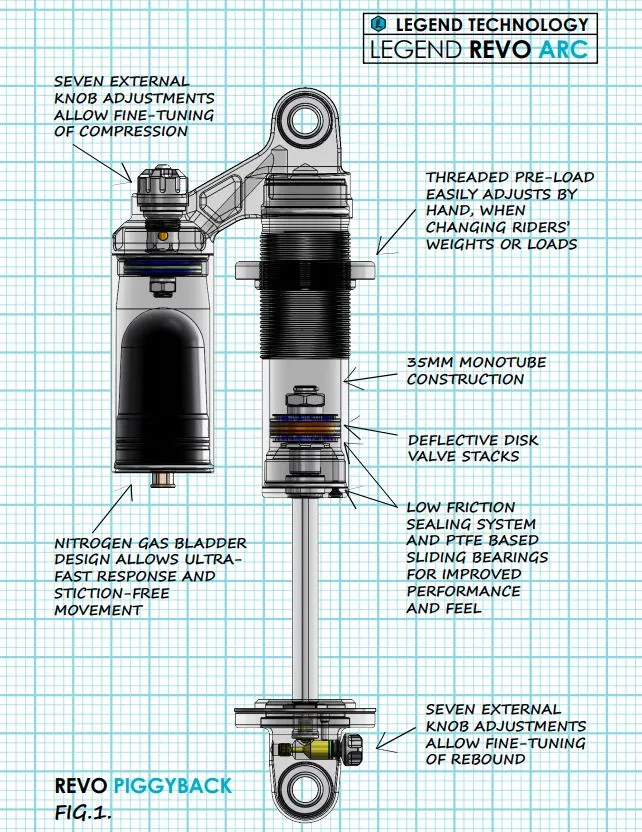

  • Available in Black Type III Hard-coat Anodize
  • Legend's touring specific spring rates produce superior ride quality and performance
  • REVO coils provide improved plush ride quality, control, and resistance to bottoming-out
  • REVO's extended coil length has larger "sweet spot" without increasing overall shock length
  • Allows minimal pre-load adjustments by hand when changing between riders' weights or loads
  • Adjusts by hand, no tools needed
  • Available in 13" and 14", standard or heavy-duty applications
  • Easy installation and alignment, provided by spherical bearings on both top and bottom
  • 35mm monotube construction
  • Deflective disc valve stacks
  • Balanced/Matched piston and base-valve design specific for these motorcycle applications
  • Low friction sealing system and PTFE based sliding bearings for improved performance and feel
  • Seven external knob adjustments allow fine-tuning of rebound
  • Seven external knob adjustments allow fine-tuning of compression
  • Provides optimum rebound and compression performance for any given rider weight, personal ride quality preference, or personal riding style
  • Nitrogen gas bladder design allows ultra-fast response and stiction-free movement
  • Light to heavy riders can fine-tune ride preference
  • Aggressive to casual riding styles can tune to desired quality or personal preference
  • NOTE FL: Heavy Duty applications are recommended for 500lb. + rider and passenger total weight.
  • NOTE DYNA, FXR, SPORTSTER: Heavy Duty application are recommended for 250lb.+ rider and passenger total weight. Also consider Heavy Duty if the majority of your riding is 2-UP, stunt riding, or aggressive riding style.
  • P65 WARNING: Cancer and Reproductive Harm
  • Lifetime Warranty
  • Made by hand in Sturgis, SD USA

Specifications +

Units: Pair
Reservoir Location: Piggyback
Base Color: Black
Extended Length: 330,20 mm (13,00")
Mounting Position: Rear
Duty: Standard
Color/Finish: Black
Product Name: Shock Absorber

Part numbers +

  • 1310-1890

Fitment +

    HARLEY DAVIDSON
  • Dyna Switchback - FLD: 2012-2016
  • Dyna Super Glide - FXD: 1999-2005, 2007-2010
  • Dyna Street Bob - FXDB: 2007-2017
  • Dyna Street Bob Limited - FXDBA: 2013
  • Dyna Street Bob Limited - FXDBB: 2014-2015
  • Dyna Street Bob Limited - FXDBC: 2016
  • Dyna Street Bob (EFI) - FXDBI: 2006
  • Dyna Street Bob Police - FXDBP: 2013-2016
  • Dyna Super Glide Custom - FXDC: 2005, 2007-2014
  • Dyna Super Glide Custom (EFI) - FXDCI: 2005-2006
  • Dyna Fat Bob - FXDF: 2008-2017
  • Dyna Fat Bob CVO/SE - FXDFSE: 2009
  • Dyna Fat Bob CVO/SE - FXDFSE2: 2010
  • Dyna Super Glide (EFI) - FXDI: 2004-2006
  • Dyna Super Glide 35th Anniversary - FXDI35: 2006
  • Dyna Low Rider - FXDL: 1999-2005, 2007-2009, 2014-2017
  • Dyna Low Rider (EFI) - FXDLI: 2004-2006
  • Dyna Low Rider S - FXDLS: 2016-2017
  • Dyna Super Glide CVO/SE - FXDSE: 2007
  • Dyna Super Glide CVO/SE - FXDSE2: 2008
  • Dyna Wide Glide - FXDWG: 1999-2005, 2007-2017
  • Dyna Wide Glide - FXDWG2: 2001
  • Dyna Wide Glide - FXDWG3: 2002
  • Dyna Wide Glide (EFI) - FXDWGI: 2004-2006
  • Dyna Super Glide Sport - FXDX: 1999-2004
  • Dyna Super Glide Sport (EFI - FXDXI: 2004-2005
  • Dyna Super Glide T-Sport - FXDXT: 2001-2003
