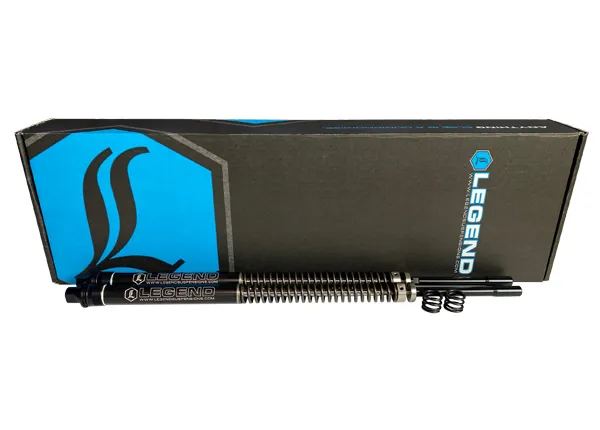

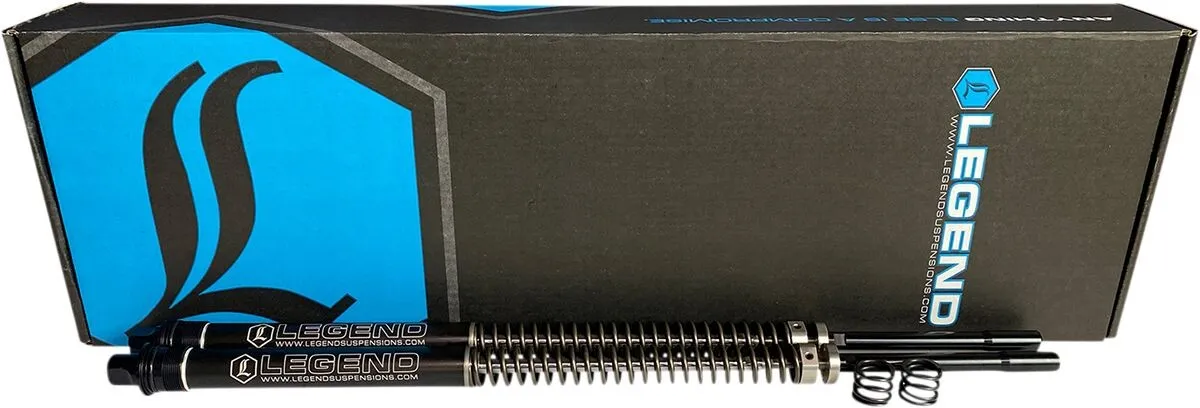

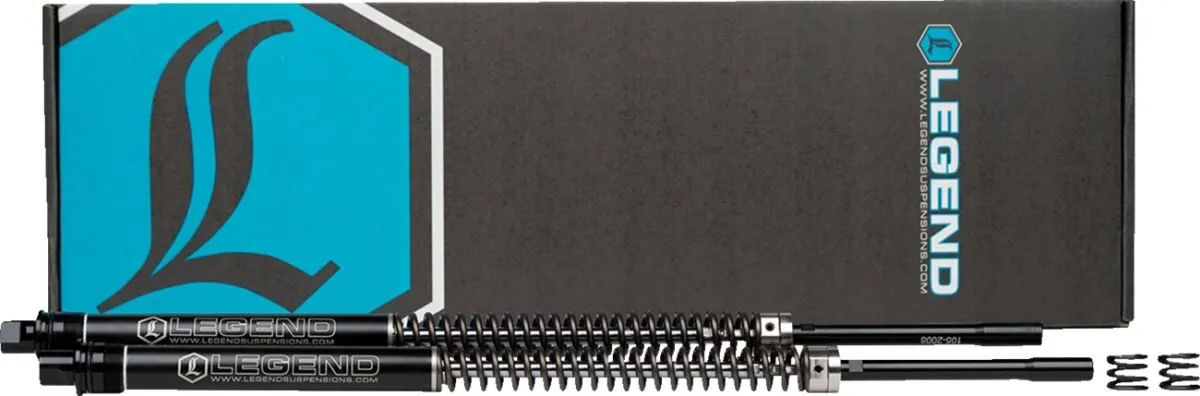

Legend Air Suspension 41mm AXEO M8 Front End Suspension For Harley Davidson 2000-2017 Softail Motorcycles (0414-0600)

  • Legend Air Suspension 41mm AXEO M8 Front End Suspension For Harley Davidson 2000-2017 Softail Motorcycles (0414-0600)
$1,072.39
Add to Basket Wishlist
Seen it cheaper elsewhere?

Our Price Promise

Seen this item cheaper on another website? Let us try and match it!

We do our upmost to keep our prices competitive but due to the number of items we sell, you may occasionally find a better price advertised elsewhere. If you have seen a cheaper price on another website let us know by filling in this form. If we’re able to match the price, we’ll look to respond via email with a unique discount code within 1 hour (during working hours) so you're not waiting too long.

Your email:
Where did you see it?
Anything else to add?

Please note:

  1. The item must be identical to the one on our website listing and must show as being available.
  2. Price match applies to items sourced from authorised UK retailers only, not private sellers.
  3. Prices will only be matched from UK based websites with prices in GBP.
  4. ARH Custom reserve the right to price match only one of each item per customer.
  5. ARH Custom reserve the right to withdraw the price match policy at any time.

×

EU stock Estimated shipping date between 25 Nov and 28 Nov.

Usually ships in 2-5 business days

All orders are shipped out of our UK premises. Estimated shipping date between 25 Nov and 28 Nov.

×

Instructions
  • Designed to be used with stock diameter front wheels
  • Easy installation

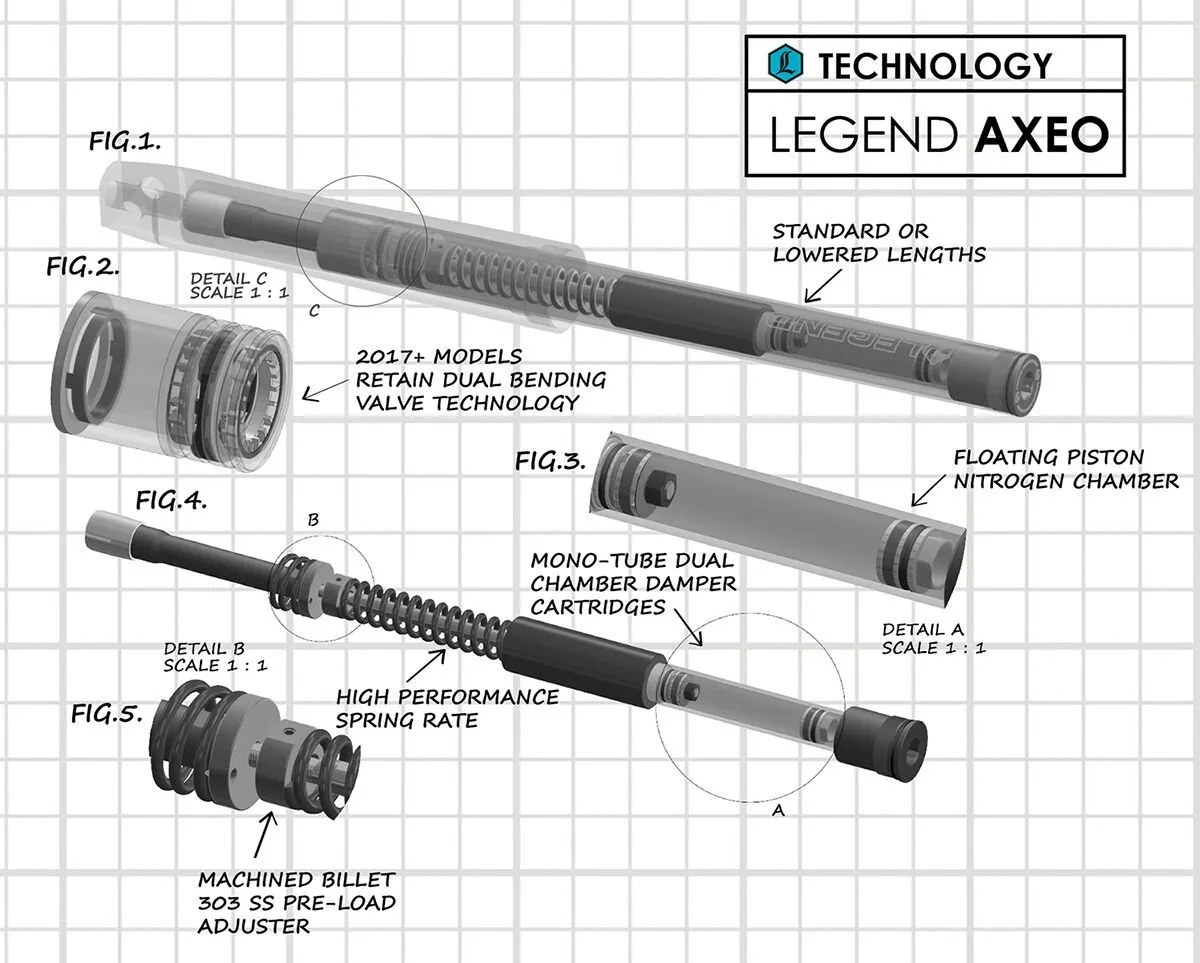

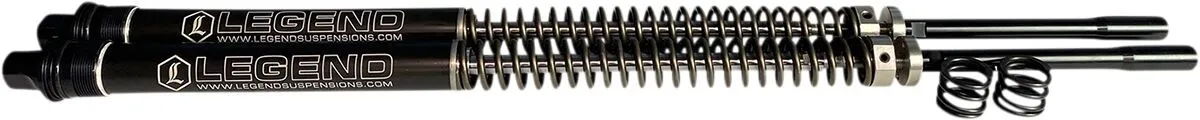

  • Includes two mono-tube, dual chambered damper cartridges and two top out springs
  • Performance spring rate
  • Machined 303 Stainless threaded pre-load adjuster
  • Increased pre-load range allows the tuning for various riding styles and weights
  • Ride quality is smooth and controlled
  • Improves stability, cornering and traction
  • Eliminates front-end dive during aggressive braking and maneuvering
  • Firm feel for high-speed sweeping turns
  • Eliminates bottoming out on large bumps or potholes
  • Reduces dragging floorboards and pegs
  • Designed for optimum performance with Legend rear suspensions
  • Lifetime Warranty
  • Made by hand in Sturgis, SD USA
  • Note:  Incorporates static sag to shorten overall fork tube length by approximately 1/2″, resulting in weight transferred to the front wheel for improved handling.

Specifications +

For Fork Tube Diameter: 41,00 mm (1,61")
Units: Kit
Height Adjustment: Standard
Type: Fork Damping
Style: For Stock Fork Tubes
Product Name: Cartridge
Color/Finish: Black
Model: Axeo

Part numbers +

  • 04140600
  • 0414-0600

Fitment +

    HARLEY DAVIDSON
  • Softail Slim - FLS: 2012-2017
  • Softail Slim - FLSS: 2016-2017
  • Softail Heritage - FLST: 2006
  • Softail Heritage Classic - FLSTC: 2000-2017
  • Softail Heritage Classic (EFI) - FLSTCI: 2001-2006
  • Softail Fat Boy - FLSTF: 2000-2017
  • Softail Fat Boy Lo - FLSTFB: 2010-2017
  • Softail Fat Boy S - FLSTFBS: 2016-2017
  • Softail Fat Boy (EFI) - FLSTFI: 2001-2006
  • Softail Fat Boy CVO/SE - FLSTFSE: 2005
  • Softail Fat Boy CVO/SE - FLSTFSE2: 2006
  • Softail Heritage (EFI) - FLSTI: 2006
  • Softail Deluxe - FLSTN: 2005-2017
  • Softail Deluxe (EFI) - FLSTNI: 2005-2006
  • Softail Deluxe CVO/SE - FLSTNSE: 2014-2015
  • Cross Bones - FLSTSB: 2008-2011
  • Softail Heritage Springer Classic - FLSTSC: 2007
  • Softail Convertible CVO/SE - FLSTSE: 2010
  • Softail Convertible CVO/SE - FLSTSE2: 2011
  • Softail Convertible CVO/SE - FLSTSE3: 2012
  • Softail Rocker - FXCW: 2008-2009
  • Softail Rocker C - FXCWC: 2008-2011
  • Softail Blackline - FXS 1584: 2011-2012
  • Softail Blackline - FXS 1690: 2012-2013
  • Softail Breakout - FXSB: 2013-2017
  • Softail Breakout CVO/SE - FXSBSE: 2013
  • Softail Breakout CVO/SE - FXSBSE2: 2014
  • Softail Breakout Pro Street CVO/SE - FXSE: 2016-2017
  • Softail - FXST: 2007
  • Softail Night Train - FXSTB: 2007-2009
  • Softail Custom - FXSTC: 2007-2010
  • Softail Deuce - FXSTD: 2007
  • Softail Springer CVO/SE - FXSTSSE: 2007
  • Softail Springer CVO/SE - FXSTSSE2: 2008
  • Softail Springer CVO/SE - FXSTSSE3: 2009
  • Softail Standard - FXST: 2008-2015
