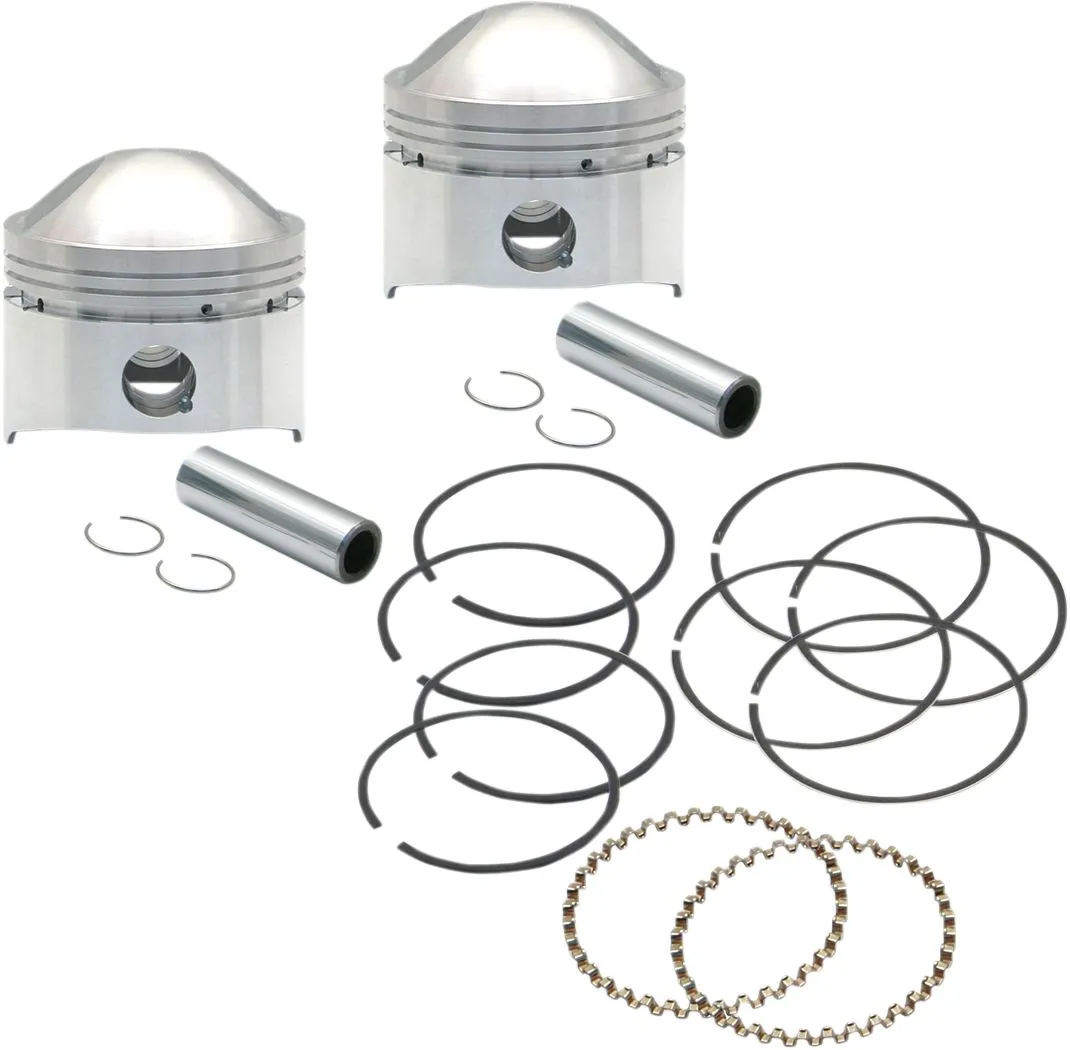

S&S 3-1/2 Inch Bore 8:1 CR Piston Kit +.030 Inch Size For 1979-1984 1340cc/80 Inch Shovel Models (106-5514)

  • S&S 3-1/2 Inch Bore 8:1 CR Piston Kit +.030 Inch Size For 1979-1984 1340cc/80 Inch Shovel Models (106-5514)
$513.38
Add to Basket Wishlist
Seen it cheaper elsewhere?

Our Price Promise

Seen this item cheaper on another website? Let us try and match it!

We do our upmost to keep our prices competitive but due to the number of items we sell, you may occasionally find a better price advertised elsewhere. If you have seen a cheaper price on another website let us know by filling in this form. If we’re able to match the price, we’ll look to respond via email with a unique discount code within 1 hour (during working hours) so you're not waiting too long.

Your email:
Where did you see it?
Anything else to add?

Please note:

  1. The item must be identical to the one on our website listing and must show as being available.
  2. Price match applies to items sourced from authorised UK retailers only, not private sellers.
  3. Prices will only be matched from UK based websites with prices in GBP.
  4. ARH Custom reserve the right to price match only one of each item per customer.
  5. ARH Custom reserve the right to withdraw the price match policy at any time.

×

US stock Estimated shipping date between 16 Jan and 22 Jan.

Usually ships in 3-4 weeks

All orders are shipped out of our UK premises. Estimated shipping date between 16 Jan and 22 Jan.

×

Standard 8:1 compression ratio. Used as stock replacement for 1340 (80") Shovelhead models, 3-1/2" bore with stock 4-1/4" stroke.

These S&S forged pistons come in an advanced alloy and skirt profiles, resulting in a quiet engine and long life, previously only achievable with cast pistons.

This is an excellent choice to overhaul your stock 1340cc Shovel.

NOTE: S&S piston fit recommendations: Close fit .0030" to .0035", loose fit .004" to .005".

Specifications +

Units: Kit
Compression Ratio: 8,0:1
Displacement: 80"
Product Name: Piston Kit
Piston Material: Aluminum
Bore - Oversize: +0,030"
Bore Size: 3,530"
Bore Oversize - Imperial: +0.030"
Compression Ratio Imperial: 8.0:1
Stroke Length: 4-1/4"

Part numbers +

  • 106-5514
  • 531767
  • ARM767135
  • 0910-1926
  • 09101926

Fitment +

    HARLEY DAVIDSON
  • Hydra Glide - E: 1936-1952
  • Hydra Glide - EL: 1936-1952
  • Hydra Glide - ELF: 1952
  • F 1200: 1946-1948
  • Hydra Glide - F: 1949-1952
  • FL 1200: 1941-1948
  • Duo Glide - FL 1200: 1958-1964
  • Electra Glide - FL 1200: 1970-1977
  • Hydra Glide - FL 1200: 1949-1957
  • Electra Glide - FLB: 1965-1969
  • Hydra Glide - FLE: 1953-1956
  • Hydra Glide - FLEF: 1953-1956
  • Duo Glide - FLF 1200: 1958-1964
  • Hydra Glide - FLF 1200: 1952-1957
  • Electra Glide - FLFB 1200: 1965-1969
  • Duo Glide - FLH 1200: 1958-1964
  • Electra Glide - FLH 1200: 1970-1980
  • Hydra Glide - FLH 1200: 1955-1957
  • Electra Glide - FLH 1340: 1979-1984
  • Electra Glide - FLHB: 1965-1969
  • Electra Glide - FLHC: 1979-1983
  • Electra Glide - FLHFB: 1965-1969
  • Duo Glide - FLHF: 1958-1964
  • Hydra - FLHF: 1955-1957
  • Electra Glide - FLHS: 1979-1980
  • Electra Glide Standard - FLHT: 1983
  • Tour Glide - FLT: 1980-1983
  • Tour Glide Classic - FLTC: 1980-1983
  • Super Glide - FX: 1971-1979
  • Sturgis - FXB: 1980-1982
  • Disk Glide - FXDG: 1983-1984
  • Super Glide - FXE: 1974-1984
  • Fat Bob - FXEF: 1979-1982
  • Super Glide - FXR: 1982-1984
  • Disc Glide - FXRDG: 1984
  • Pursuit Glide - FXRP: 1984
  • Low Rider - FXRS: 1982, 1984
  • Low Glide - FXRS: 1982, 1984
  • Super Glide II - FXRS: 1982
  • Sport - FXRT: 1984
  • Low Rider - FXS 1200: 1977-1979
  • Low Rider - FXS 1340: 1979-1983
  • Low Rider - FXSB: 1984
  • Wide Glide - FXWG: 1980-1984
