S&S TC 583G Camshafts & Gear Kit For 1999-2006 TC/B (Excluding 2006 Dyna) Models (330-0107)

S&S TC 583G Camshafts & Gear Kit For 1999-2006 TC/B (Excluding 2006 Dyna) Models (330-0107)

Name: S&S TC 583G Camshafts & Gear Kit For 1999-2006 TC/B (Excluding 2006 Dyna) Models (330-0107)
Brand: S&S Cycle
SKU: 39815
Price: 852.80 USD
Availability: InStock

$1,151.28

Add to Basket Wishlist
Seen it cheaper elsewhere?

US stock

Estimated shipping date between 21 Nov and 27 Nov.

Overview of the product

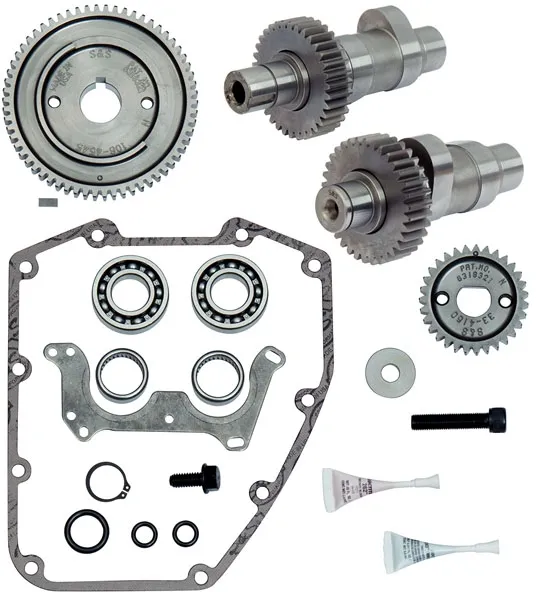

Camshafts come with installed inner drive gears only. Camshaft & gear kit includes camshafts with gears installed and completed with an outer drive gear set.

Gear Drive cams with inner & outer drive gear complete kit

NOTE: Adjustable style pushrods must be used with all cams, apart from the 475G and 510G where OEM pushrods can be re-used when desired.

NOTE: Using .625", .640" and .675" lift cams will require crankcase clearancing.

NOTE: Beehive valve springs of 2004-2017 Dyna, 2004-2017 Softail and 2004-2016 Toring models will accommodate valve lifts up to 590" valve lift and, 160 lb. of valve seat force, up to 6200RPM.

Running higher than 6200 RPM or lifts greater than 590" will require performance valve springs.

Specifications +

Exhaust Close Imperial: 24°
Intake Lobe Centerline Imperial: 96.5°
Intake Duration: 203°
Intake Lift Imperial: 0.583"
Intake Close Imperial: 18°
Exhaust Duration Imperial: 262°
Grind: 583 Series
Exhaust Lift: 0,583"
Exhaust Open: 58°
Intake Open Imperial: 5°
Intake Open: 5°
Exhaust Lift Imperial: 0.583"
Product Name: Cam Kit
Units: Kit
Exhaust Duration: 262°
Exhaust Lift at TDC: 0,206"
Application: Exhaust| Intake
Intake Duration Imperial: 203°
Exhaust Lobe Centerline Imperial: 107°
Exhaust Close: 24°
Intake Close: 18°
Type: Gear
Intake Lift at TDC: 0,113"
Exhaust Open Imperial: 58°
Exhaust Lobe Centerline: 107°
Intake Lobe Centerline: 96,5°
Exhaust Lift at TDC Imperial: 0.206"
Intake Lift: 0,583"
Intake Lift at TDC Imperial: 0.113"

Part numbers +

ARM120465
564021
330-0107
0925-0744
09250744

Fitment +

HARLEY DAVIDSON

Road King - FLHR: 1999-2006
Road King Classic - FLHRC: 2004
Road King Classic (EFI) - FLHRCI: 1999-2006
Road King (EFI) - FLHRI: 1999-2006
Road King Custom - FLHRS: 2004-2006
Road King CVO/SE (EFI) - FLHRSEI: 2002
Road King CVO/SE (EFI) - FLHRSEI2: 2003
Road King Custom - FLHRSI: 2004-2006
Electra Glide Standard - FLHT: 1999-2006
Electra Glide Classic - FLHTC: 2002-2005
Electra Glide Classic (EFI) - FLHTCI: 1999-2006
Electra Glide CVO/SE - FLHTCSE2: 2005
Electra Glide Ultra Classic (EFI) - FLHTCUI: 1999-2006
Electra Glide Ultra Classic CVO/SE - FLHTCUSE: 2006
Electra Glide Standard - FLHTI: 2004-2006
Street Glide - FLHX: 2006
Street Glide (EFI) - FLHXI: 2006
Softail Heritage - FLST: 2006
Softail Heritage Classic - FLSTC: 2000-2006
Softail Heritage Classic (EFI) - FLSTCI: 2001-2006
Softail Fat Boy - FLSTF: 2000-2006
Softail Fat Boy (EFI) - FLSTFI: 2001-2006
Softail Fat Boy CVO/SE - FLSTFSE: 2005
Softail Fat Boy CVO/SE - FLSTFSE2: 2006
Softail Heritage (EFI) - FLSTI: 2006
Softail Deluxe - FLSTN: 2005-2006
Softail Deluxe (EFI) - FLSTNI: 2005-2006
Softail Heritage Springer - FLSTS: 2000-2003
Softail Heritage Springer Classic - FLSTSC: 2005-2006
Softail Heritage Springer Classic (EFI) - FLSTSCI: 2005-2006
Softail Heritage Springer (EFI) - FLSTSI: 2003
Road Glide - FLTR: 1999-2002
Road Glide (EFI) - FLTRI: 1999-2006
Road Glide CVO/SE (EFI) - FLTRSEI: 2000
Road Glide CVO/SE (EFI) - FLTRSEI2: 2001
Dyna Super Glide - FXD: 1999-2005
Dyna Super Glide Custom - FXDC: 2005
Dyna Super Glide Custom (EFI) - FXDCI: 2005
Dyna Super Glide (EFI) - FXDI: 2004-2005
Dyna Low Rider - FXDL: 1999-2005
Dyna Low Rider (EFI) - FXDLI: 2004-2005
Dyna Wide Glide - FXDWG: 1999-2005
Dyna Wide Glide - FXDWG2: 2001
Dyna Wide Glide - FXDWG3: 2002
Dyna Wide Glide (EFI) - FXDWGI: 2004-2005
Dyna Super Glide Sport - FXDX: 1999-2004
Dyna Super Glide Sport (EFI - FXDXI: 2004-2005
Dyna Super Glide T-Sport - FXDXT: 2001-2003
Softail - FXST: 2000-2006
Softail Night Train - FXSTB: 2000-2006
Softail Night Train (EFI) - FXSTBI: 2003-2006
Softail Deuce - FXSTD: 2000-2006
Softail Deuce (EFI) - FXSTDI: 2001-2006
Softail Deuce CVO/SE - FXSTDSE: 2003
Softail Deuce CVO/SE - FXSTDSE2: 2004
Softail Standard (EFI) - FXSTI: 2003-2006
Softail Springer - FXSTS: 2000-2005
Softail Springer (EFI) - FXSTSI: 2003-2005
