  • Zodiac 25mm Offset Transmission Primary Kit For 1991-1999 Evolution Softail, 1999-2005 Dyna Twin-Cam And 2000-2005 Softail Twin-Cam Models (700889)

Zodiac 25mm Offset Transmission Primary Kit For 1991-1999 Evolution Softail, 1999-2005 Dyna Twin-Cam And 2000-2005 Softail Twin-Cam Models (700889)

  • Zodiac 25mm Offset Transmission Primary Kit For 1991-1999 Evolution Softail, 1999-2005 Dyna Twin-Cam And 2000-2005 Softail Twin-Cam Models (700889)
$918.38
Add to Basket Wishlist
Seen it cheaper elsewhere?

Our Price Promise

Seen this item cheaper on another website? Let us try and match it!

We do our upmost to keep our prices competitive but due to the number of items we sell, you may occasionally find a better price advertised elsewhere. If you have seen a cheaper price on another website let us know by filling in this form. If we’re able to match the price, we’ll look to respond via email with a unique discount code within 1 hour (during working hours) so you're not waiting too long.

Your email:
Where did you see it?
Anything else to add?

Please note:

  1. The item must be identical to the one on our website listing and must show as being available.
  2. Price match applies to items sourced from authorised UK retailers only, not private sellers.
  3. Prices will only be matched from UK based websites with prices in GBP.
  4. ARH Custom reserve the right to price match only one of each item per customer.
  5. ARH Custom reserve the right to withdraw the price match policy at any time.

×

EU stock Estimated shipping date between 16 Dec and 19 Dec.

Usually ships in 2-5 business days

All orders are shipped out of our UK premises. Estimated shipping date between 16 Dec and 19 Dec.

×

Overview of the product

Contrary to Evolution models it is not possible to move the transmission on Twin-Cam models to the left as these models have the transmission bolted to the crankcase. The Zodiac off-set kit enables you to move your primary 12,25,45 or 55mm without moving your stock or aftermarket 5 speed transmission, or 25, 45 or 55mm when you have a 6 speed Zodiac transmission or conversion.

All these kits come with an extended transmission main shaft and extended transmission main drive 5th gear, leaving the transmission housing in exactly the same place but allowing you to offset the front final drive pulley, thus creating space for a wide rear tire.

The 12mm off-set kit allows the use of a 200 tire with the stock belt in an Evolution or Twin-Cam frame, the 25mm offset kit allows a 230 wide tire on a 7.50 rim in both the Evolution and Twin-Cam frame if the late type "narrow" final drive belt drive is used. If a chain is used for the final drive the stock frames will accept up to 250 wide tires on a 9" rim.

The transmission main shaft and drive gear are CNC manufactured from High Stress 20CrMnT gear steel by one of the worlds leading automotive transmission factories.

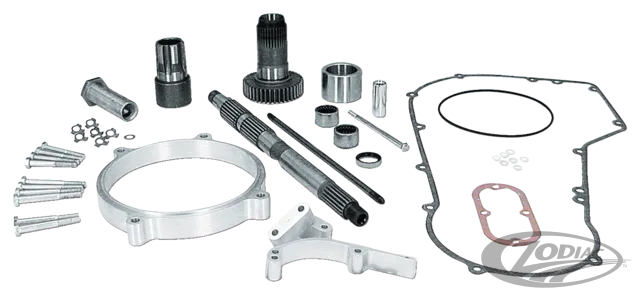

Gear and shaft are tempered and stress released to a core hardness of 35 to 45 Rockwell and have a surface hardness of 58 to 60 Rockwell. Our offset primary kits contain: primary spacer ring, extended crankshaft extension and extended crankshaft nut, extended transmission main shaft, extended main drive 5th gear with needle bearings and seal, extended belt pulley spacer, extended clutch push rod, extended starter jack shaft (only for 25,45 and 55mm kits), starter jack spacer, primary-to-transmission spacer and all required hardware.

Part numbers +

  • 700889
